PRODUCT DETAILS
Note
This unit does not include RF Generator functionality, only Spectrum Analyzer functionality is available.
Feature
-
Easy to plug in your RF Explorer unit, compatible with all models
-
Extend band coverage to all popular sub-1Ghz ISM bands, including 315Mhz, 433Mhz, 868Mhz and 915Mhz, also including UHF TV, 70cm and 33cm HAM radio, etc. Any frequency from 240Mhz to 960Mhz is covered.
-
Extend internal FLASH and RAM memory for additional capabilities
-
Lifetime free firmware upgrades available, open to community requested features
-
For detailed instructions please visit www.rf-explorer.com/expansion
Description

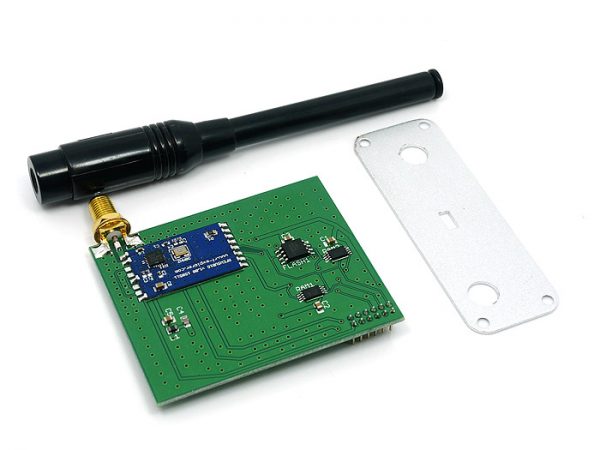

RFEMWSUB1G is an Expansion Module for RF Explorer. It can be plugged in your RF Explorer unit to extend the coverage to 240-960Mhz frequency band. It gets attached internally to the RF Explorer main board and exhibits a second antenna connector to cover the new band.
Specification
-
Frequency band coverage: 240-960 MHz
-
Standard SMA 50 ohms connector
-
Amplitude resolution: 0.5dBm
-
Dynamic range: -115dBm to 0dBm
-
Absolute Max input power: +5dBm
-
Average noise floor level (typical): -110dBm
-
50 ohms wideband dual band telescopic 144/430MHz telescopic antenna included
-
Frequency stability and accuracy (typical): +-10ppm
-
Amplitude stability and accuracy (typical): +-3dBm
-
Frequency Span: 100MHz
-
Frequency resolution: 1Khz
-
Resolution bandwidth (RBW): automatic 3KHz to 600KHz
Techsupport
This product is designed by RF-Explorer,
-
For more info and to get started with your RF Explorer, visit the start page.
-
For questions and support, please visit https://support.rf-explorer.com.
-
For the software for RF Explorer series, please click the following logo for more information:
Technical details
Dimensions | 145mm x100mm x15mm |
Weight | G.W 58g |
Battery | Exclude |
Part List
RFEMWSUB1G Module | 1 |
SMA 50 ohms connector | 1 |
Antenna | 1 |
ECCN/HTS
HSCODE | 9030900090 |
USHSCODE | 9030908940 |
UPC | 841454103844 |
ROHS | 1 |
RF Explorer RFEMWSUB1G Module
$78.00
Easy to plug in your RF Explorer unit, compatible with all models Extend band coverage to all popular sub-1Ghz ISM bands Extend internal FLASH and RAM memory for additional capabilities.
RF Explorer RFEMWSUB1G Module
$78.00
Easy to plug in your RF Explorer unit, compatible with all models Extend band coverage to all popular sub-1Ghz ISM bands Extend internal FLASH and RAM memory for additional capabilities.
