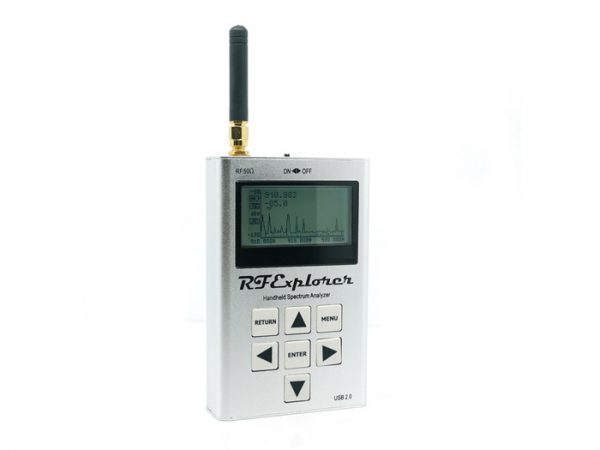

RF Explorer 868M

Feature

• Pocket size and light weight

• Solid aluminum metal case

• Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes

• Integrated RF Signal Generator

• Lifetime free firmware upgrades available, open to community requested features

• High capacity Lipo for 16hs+ of continuous run, rechargeable by USB

• Windows PC client Open Source

• Can be extended with internal Expansion Modules for additional band and functionality

Description

RF Explorer is a handheld digital spectrum analyzer, aimed to provide a very affordable tool for work in all ISM popular frequency bands. It is based on a highly integrated frequency synthesizer which offers high performance, compact size, low consumption and low cost.

It has been designed to be used outdoor and indoor, and works nice with a PC connected for extra functionality using standard mini-USB 2.0 connector.

We also prepared a nice EVA case for RF Explorer, check it out here

Specification

• Frequency band: 860-870 MHz (enhanced to 850-880 MHz if an Expansion Module is connected)

• Frequency span: 112 KHz-10 MHz(enhanced to 30 MHz if an Expansion Module is connected)

• Graphics LCD 128×64 pixels, great visibility outdoors

• PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits

• Backlight for great indoor visibility

• Standard SMA 50 ohms connector, a matching antenna is included

• Amplitude resolution: 0.5dBm

• Dynamic range: -115dBm to 0dBm

• Absolute Max input power: +5dBm

• Average noise level (typical): -110dBm

• RF Generator amplitude: 0dBm to 20dBm

• Frequency stability and accuracy (typical): +-10ppm

• Amplitude stability and accuracy (typical): +-3dBm

• Frequency resolution: 1Khz

• Resolution bandwidth (RBW): automatic 2.6Khz to 80Khz

• Weight: 185g

• Size: 113x70x25 mm

Tech Support

This product is designed by RF-Explorer

• For more info and to get started with your RF Explorer, visit the start page.

• For questions and support, please visit https://support.rf-explorer.com.

• As for the software for RF Explorer series, please click the following logo for more information:
