Raspberry Pi Wide Angle Camera Module

PRODUCT DETAILS

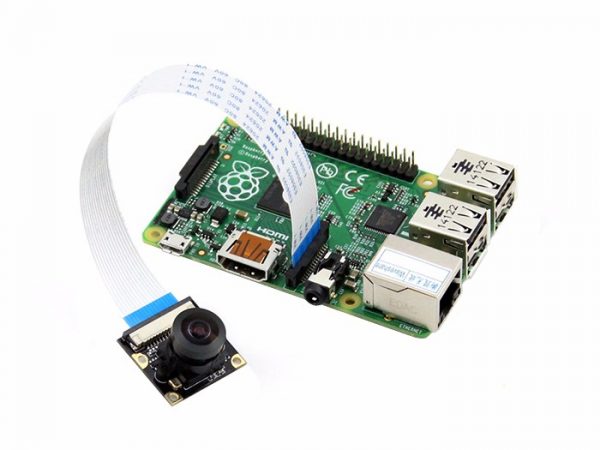

Raspberry Pi Wide Angle Camera Module is a low-cost  Fisheye Lens, wider Field View,Camera module, designed for Raspberry Pi.

  • Raspberry Pi Camera, supports all revisions of the Pi

  • Fisheye Lens, offers wider field of view

  • 5 megapixel OV5647 sensor

  • Camera specifications

        CCD size : 1/4inch

        Aperture (F) : 2.35

        Focal Length : adjustable

        Field of View : 160 degree (while other normal cameras are typically 72 degree)

        Diagonal angle : 160 degree

        Horizontal angle : 132 degree

         Sensor best resolution : 1080p

  • 4 screw holes

        Used for attachment

        Provides 3.3V power output

        Supports connecting fill flash LED

  • Dimension: 25mm x 24mm

If you want to purchase Raspberry Pi Infrared Camera Module, here is the link.

Please click here for more information about this procuct.

  1. RPi Camera (G) × 1

  2. 15-pin FFC (opposite sides contact) × 1

Technical details

Dimensions 110mm x50mm x20mm
Weight G.W 17g
Battery Exclude

ECCN/HTS

HSCODE 8525801302
USHSCODE 8529909900
