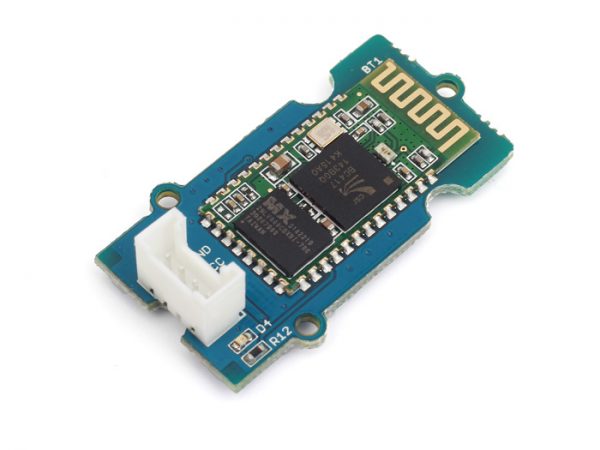

Grove – Serial Blueseeed(CSR BC417)

PRODUCT DETAILS

Grove – Serial Blueseeed TH (CSR BC417) is an easy to use module compatible with the existing Grove Base Shield and designed for transparent wireless serial connection setup. The Grove – CSR BC417 module is fully qualified BluetoothV2.0+EDR(Enhanced Data Rate) 2Mbps Modulation with a complete 2.4GHz radio transceiver and baseband. It uses CSR Bluecore 04-External single chip Bluetooth system with CMOS technology and with AFH(Adaptive Frequency Hopping Feature).



Features:

  • Fully Qualified Bluetooth V2.0+EDR 3Mbps Modulation

  • Selectable baud rate

  • Auto-reconnect in 30 min when disconnected as a result of beyond the range of connection





Technical details

Dimensions 140mm x85mm x11.6mm
Weight G.W 10g
Battery Exclude
Operating Voltage 5.0VDC
Data Rate 2Mbps
RF Transmit Power (Max) +4dBm
Sensitivity -80dBm

Part List

Grove – Serial Bluetooth v3.0 1
Grove Cable 1

ECCN/HTS

HSCODE 8517629900
USHSCODE 8517700000
UPC 841454107705

Grove – Serial Blueseeed(CSR BC417)

$29.00
