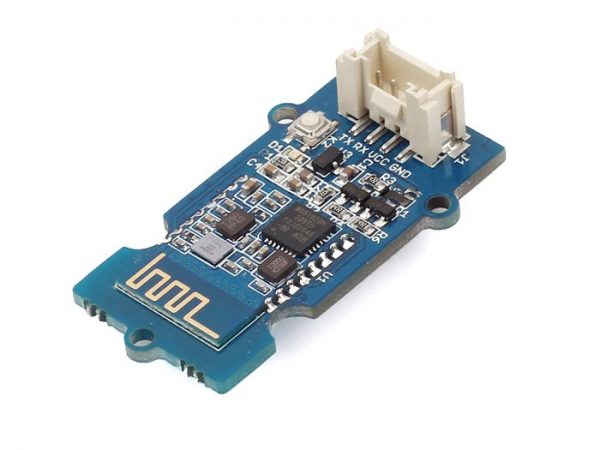

Grove – Blueseeed – Dual model (HM13)

PRODUCT DETAILS

Grove – Blueseeed LE – Dual model (HM13) uses CSR dual-mode Bluetooth chip,with the ARM architecture single chip which supports AT instructions, Users can develop flexibly according to the serial baud rate, equipment name, pairing password.



Features

  • BT Version: Bluetooth Specification V4.0 & BLE

  • UART send and receive max bytes is 512

  • Other device to module in SPP mode: 90 Bytes per packet

  • Other device to module in BLE mode: 20 Bytes per packet

  • Two data transmission mode, balance mode and high speed mode

  • Working frequency: 2.4GHz ISM band

  • Modulation method: GFSK(Gaussian Frequency Shift Keying)

  • RF Power: -23dbm, -6dbm, 0dbm, 6dbm.

  • Speed: Asynchronous: 3K Bytes

  • Synchronous: 3K Bytes

  • Security: Authentication and encryption

  • Service: Slave SPP, Peripheral BLE, UUID FFE0,FFE1

  • Power: +3.3/+5.0VDC 50mA

  • Long range: SPP 30 meters, BLE 60 meters

  • Power: SPP 13.5mA, BLE 9.5mA

  • Working temperature:–5 ~ +65 Centigrade



Specification



K2:During connected status,It would be disconnected by pressing K2 more than 100ms.During sleeping model,It could be restored through pressing K2 factory settings.

U1:U1 is the wireless module,It includes automatic power on reset circuit.

D1:The led display two work models: sleeping whit It slowly flashing;connected status whit It continuously lighting.

J1:The standard Grove connector.



Technical details

Dimensions 145mm x85mm x10mm
Weight G.W 10g
Battery Exclude

Part List

Grove – BLE (dual model) 1

ECCN/HTS

HSCODE 8517709000
USHSCODE 8517700000
UPC 841454108665
ROHS 1
