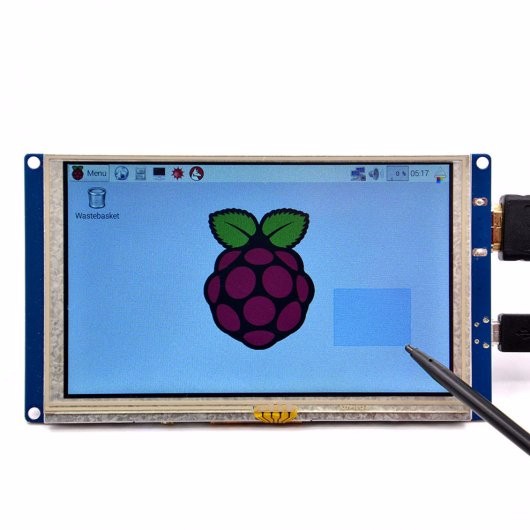

5 Inch HDMI Display with USB TouchScreen

PRODUCT DETAILS

Note

This display is compatible with Raspberry Pi 4.

Utilizing pre-existing Linux/Windows/Mac drivers, this 800 x 480 touchscreen will help you hit the ground running. Resistive touch function gives the user full control over any device. Supports Windows XP SP3, Windows 7, Windows 8, Windows 8.1, Windows 10, Android 4.2, Windows CE7, Ubuntu, and Debian. Built-in EDID device information very easy to let the equipment correctly identified, USB touch can support functions of the right mouse button and drag and drop.


FEATURES

  • • Resolution up to 800 x 480

  • • USB resistive touch control

  • • Free-driver,Plug and Play

  • • Supports Raspbian, Ubuntu Mate, NOOBS with RaspberryPi

  • • Supports Debian, Angstrom with BeagleBone

  • • Supports Windows/Ubuntu/Mac with PC

  • • Supports Intel-Processor Base MiniPC.

  • • ULP(Ultra Low Power) consumption backlight


SPECIFICATION

  • • Power: 5V Power via USB Micro

  • • Display Type: 5″ TFT LCD

  • • Resolution: 800×480

  • • Touchscreen: USB

  • • Interface: HDMI & USB 2.0 Full Speed


PART LIST

  • • 1 x 5 Inch 800 X 480 HDMI Display with USB Touchscreen

  • • 1 x Stylus


DOCUMENT


RELATED PRODUCTS

PiShow 2.4 Inch Resistive Touch Display PiShow 2.8″ Resistive Touch Display      7 Inch HDMI 1280×800 IPS Display

If you are willing to know more information about Raspberry Pi display, please view the table as follow.

Product name Resolution Power supply Display interface For use with Dimension(mm) Touch panel type Display tec.
5 inch 720×1280 HDMI IPS LCD Display 720×1280 5V HDMI2.0 Raspberry Pi3, Windows, etc. 134×84 None IPS
5 inch 800×480 Capacitive TouchScreen 800×480 5V HDMI & USB 2.0 Raspberry Pi3, Windows, etc. 184x106x45 Capacitive TFT
5 Inch HDMI Display with USB TouchScreen 800×480 5V HDMI & USB 2.0 Raspberry Pi3, Pi4, Windows, etc. 170x90x40 Resistive TFT
5 inch Capacitive touch screen & Acrylic Case Kit 800×480 5V HDMI & USB 2.0 Raspberry Pi3, Windows, etc. 210x150x50 Capacitive TFT
7 inch 720×1280 HDMI IPS LCD Display 720×1280 5V HDMI2.0 Raspberry Pi3, Pi4, Windows, etc. 192×118 None IPS
Raspberry Pi 7 inch Touchscreen Display 800×480 5V Display ribbon cable Raspberry Pi3, Pi2, Pi 194x110x20 Capacitive TFT
7 Inch 1024×600 Capacitive Touch Screen With Camera Kit 1024×600 5V HDMI & USB 2.0 Raspberry Pi3, Windows, etc. 177x113x15 Capacitive TFT
10.1 inch 1200×1920 HDMI IPS LCD Display 1200×1920 5V HDMI2.0 Raspberry Pi3, Pi4,Windows,etc. 255×165 None IPS
15.6 Inch 1920*1080 Full HD IPS Touch Screen Portable Monitor 1920×1080 5V Mini DP/ Mini HDMI / Type C Raspberry Pi3,Pi4,Windows,etc. 375x230x12 Capacitive IPS
7 Inch HDMI 1280×800 IPS Display 1280×800 7.5V~12V AV + VGA + HDMI (HDMI 1.2) Raspberry Pi3, Windows, etc. 162x106x5 None IPS
7 Inch 1024×600 Capacitive Touch Screen DIY Kit 1024×600 5V AV + VGA + HDMI (HDMI 1.2) Raspberry Pi3, Windows, etc. 265x165x50 Capacitive TFT
10.1 Inch LCD Display – 1366×768 HDMI&VGA&NTSC&PAL 1366×768 5V~24V AV + VGA + HDMI (HDMI 1.2) Raspberry Pi3,Pi4,Windows,etc. 230x150x5 None TFT
Raspberry Pi HDMI LCD (10.1 inch) 1280×800 5V HDMI & USB 2.0 Raspberry Pi3,Pi4,Windows,etc. 290x200x35 Capacitive IPS

Technical details

Dimensions 170mm x90mm x40mm
Weight G.W 144g
Battery Exclude

ECCN/HTS

HSCODE 8528521200
USHSCODE 8473305100
UPC 841454117735
