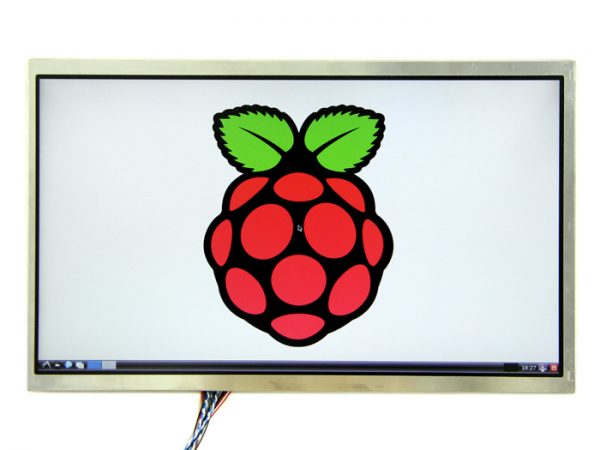

10.1 Inch LCD Display – 1366×768 HDMI&VGA&NTSC&PAL

PRODUCT DETAILS

Features

  • Ultra-thin design
  • High resolution of 1366×768
  • Multiple video formats supported
  • Compatible with Raspberry Pi A+,B,B+/2.

Description

A geek style monitor for embedded computer system, consists of a 10.1 inches TFT-LCD and a driver board.

TFT-LCD stands for Thin-film-transistor liquid-crystal display.The TFT technology is used on LCD to improve image quanlities such as addressability and contrast. In the method of switching individual elements(pixels),the TFT technology let each pixel be attached to a transistor and capacitor actively maintaining the pixel state while other pixels are being addressed, so a TFT LCD is also an active-matrix LCD, in contrast to passive-matrix LCDs.

This TFT LCD has 10.1 inches diagonal measured active display area with HD resolution (1366 horizontal by 768 vertical pixel array)and an integral LED backlight system. Furthermore, it also includes a little PCB controller for you to adjust brightness, color and contrast.

The driver board is specially designed to meet the needs of market and the development of small size, versatile, wide-grade industrial LCD panels, it can support multiple video formats like HDMI, VGA, NTSC and PAL.

This monitor has been tested with RPI, BeagleBone, and personal computers. An HDMI cable and AC/DC adapter is not included, should be purchased separately.

Note

This brand-new display is assembled by an LCD panel and a driver board we sold in the past. We have tested for their compatibility.

If you are willing to know more information about Raspberry Pi display, please view the table as follow.

Product name Resolution Power supply Display interface For use with Dimension(mm) Touch panel type Display tec.
5 inch 720×1280 HDMI IPS LCD Display 720×1280 5V HDMI2.0 Raspberry Pi3, Windows, etc. 134×84 None IPS
5 inch 800×480 Capacitive TouchScreen 800×480 5V HDMI & USB 2.0 Raspberry Pi3, Windows, etc. 184x106x45 Capacitive TFT
5 Inch HDMI Display with USB TouchScreen 800×480 5V HDMI & USB 2.0 Raspberry Pi3, Pi4, Windows, etc. 170x90x40 Resistive TFT
5 inch Capacitive touch screen & Acrylic Case Kit 800×480 5V HDMI & USB 2.0 Raspberry Pi3, Windows, etc. 210x150x50 Capacitive TFT
7 inch 720×1280 HDMI IPS LCD Display 720×1280 5V HDMI2.0 Raspberry Pi3, Pi4, Windows, etc. 192×118 None IPS
Raspberry Pi 7 inch Touchscreen Display 800×480 5V Display ribbon cable Raspberry Pi3, Pi2, Pi 194x110x20 Capacitive TFT
7 Inch 1024×600 Capacitive Touch Screen With Camera Kit 1024×600 5V HDMI & USB 2.0 Raspberry Pi3, Windows, etc. 177x113x15 Capacitive TFT
10.1 inch 1200×1920 HDMI IPS LCD Display 1200×1920 5V HDMI2.0 Raspberry Pi3, Pi4,Windows,etc. 255×165 None IPS
15.6 Inch 1920*1080 Full HD IPS Touch Screen Portable Monitor 1920×1080 5V Mini DP/ Mini HDMI / Type C Raspberry Pi3,Pi4,Windows,etc. 375x230x12 Capacitive IPS
7 Inch HDMI 1280×800 IPS Display 1280×800 7.5V~12V AV + VGA + HDMI (HDMI 1.2) Raspberry Pi3, Windows, etc. 162x106x5 None IPS
7 Inch 1024×600 Capacitive Touch Screen DIY Kit 1024×600 5V AV + VGA + HDMI (HDMI 1.2) Raspberry Pi3, Windows, etc. 265x165x50 Capacitive TFT
10.1 Inch LCD Display – 1366×768 HDMI&VGA&NTSC&PAL 1366×768 5V~24V AV + VGA + HDMI (HDMI 1.2) Raspberry Pi3,Pi4,Windows,etc. 230x150x5 None TFT
Raspberry Pi HDMI LCD (10.1 inch) 1280×800 5V HDMI & USB 2.0 Raspberry Pi3,Pi4,Windows,etc. 290x200x35 Capacitive IPS

Technical details

Dimensions 230mm x150mm x5.2mm
Weight G.W 475g
Battery Exclude
Operating Voltage 5~24V
Video Input HDMI, VGA, AV
Screen Size 10.1″
Screen Type TFT-LCD
Mode TN, Normally White, Transmissive
Display Color 262K
Lamp Type WLED
Frequency 60Hz
Signal Type LVDS (1 ch, 6-bit)
Max. Resolution 1366×768
Min. Brightness 200cd/m2
Min. Contrast Ratio 400:1
Display Ratio 16:9

Part List

10.1 Inch LCD Display 1

ECCN/HTS

HSCODE 9013803010
USHSCODE 9013807000
UPC 841454113492
