Wio Terminal: ATSAMD51 Core with Realtek RTL8720DN BLE 5.0 & Wi-Fi 2.4G/5G Dev Board with Free Course

Key Features

• Powerful MCU: Microchip ATSAMD51P19 with ARM Cortex-M4F core running at 120MHz

• Reliable Wireless Connectivity: Equipped with Realtek RTL8720DN, dual-band 2.4Ghz / 5Ghz Wi-Fi

• Highly Integrated Design: 2.4” LCD Screen, IMU and more practical add-ons housed in a compact enclosure with built-in magnets & mounting holes

• Raspberry Pi 40-pin Compatible GPIO

• Compatible with over 300 Plug&Play Grove modules to explore with IoT

• USB OTG Support

• Support Arduino, CircuitPython, Micropython, ArduPy(What is ArduPy?), AT Firmware, Visual Studio Code

• Azure Certified Device: Sense and tag real-world data and visualize through Azure IoT Central

• TELEC certificated

Description

The Wio (Wireless Input and Output) platform (Wio Link, Wio Nodes,etc.) was first introduced to the world at the end of 2015 by Seeed.

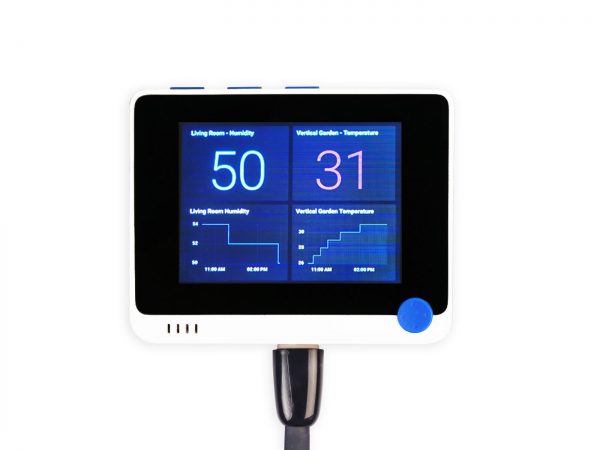

Meet our new member: Wio Terminal is compatible with Arduino and Micropython, built with an ATSAMD51 microcontroller with wireless connectivity supported by Realtek RTL8720DN. Its CPU speed runs at 120MHz (Boost up to 200MHz). Realtek RTL8720DN chip supports both Bluetooth and Wi-Fi providing the backbone for IoT projects. The Wio Terminal is Highly Integrated with a 2.4” LCD Screen, there is an onboard IMU(LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, and infrared emitter(IR 940nm).

There are built-in magnets and two mounting holes on the well-designed enclosure, allowing you to set up your IoT project without hassle.

On top of that, it also has two multifunctional Grove ports for connecting with over 300 modules and Raspberry Pi 40-pin compatible GPIO for tons of Pi HAT add-ons, which means there are endless IoT possibilities you can create with this tiny device!

With Wio Terminal, you can:

• Sense and tag the Real-World data with over 300 Groves created by Seeed and visualize through Azure IoT Central Platform to create an end-to-end IoT project

• Use a 100% open-source Hardware in a pythonic way

• Build your program interpreter starting from 90% with LCD screen and compact enclosure

• Create embedded GUI with easy-to-use graphical elements and beautiful visualized editing tools.

Wio Terminal Based IoT Scenario Kits with step-by-step tutorials



Hello World of AI

Powered by TinyML and Wio Terminal, Paired up with Edge Impulse and Azure IoT, your will find an easier way to navigate the ever-changing landscape of their AIoT journey.

Connecting the Wio Terminal to Azure IoT Central

Wio Terminal is an Azure certified device, not only can the artificial nose sense and tag the scents you want to know in the air, but everything can be analyzed and visualized in real-time through Azure IoT Central. More importantly, you can automatically trigger rules when, for example, a bad smell is being detected, therefore allowing the nose to be much smarter than if it were just a standalone, offline, device.

Connecting the Artificial Nose to Azure IoT Central – Real-time telemetry.

What other cool things can you play with Wio Terminal?

• Artificial Nose that can Discern Different Kinds of Rum or ScotchTV

• Affordable IR Thermal Imaging Camera

• Remote Controller

• Cost-effective Pulse Oximeter

• Weather Forecast Monitor

• Run TinyGO on Wio Terminal

• Printer

• GPS Navigator

• Water Level Detector

• …

Applications

• Python Terminal Device

• Data Collection Machine Learning powered device

• Hand-held analyzer

• Retro Gaming Device

• IoT Controller

• Smart Robot for Education

• IoT application quick prototyping

• Slave device / Accessories for Raspberry Pi
