SenseCAP Wireless Soil Moisture and Temperature Sensor – LoRaWAN EU868MHz

PRODUCT DETAILS

About SenseCAP

Among the first launch of Seeed industrial IoT (IIoT) product series, SenseCAP is focusing on wireless environmental sensing applications: smart agriculture, precision farming, and smart city, to name a few. It consists of hardware products (sensors, data-loggers & gateways, etc.), software services (SenseCAP portal, mobile App, open dashboard), an API for device & data management.

Note

Please email to sensecap[at]seeed[dot]cc to request any technical support for this product.

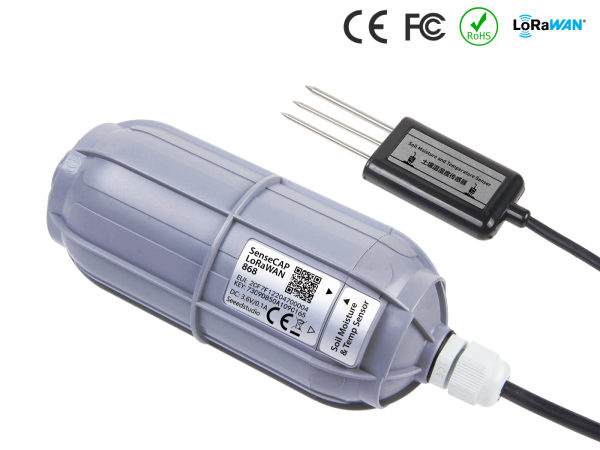

SenseCAP Wireless Soil Moisture & Temperature Sensor measures soil volumetric water content (VWC) and soil temperature at the range of 0 ~ 100% (m³/m³) and -30 ~ 70℃ respectively. With the high-quality soil moisture and temperature probe, this sensor features high precision and sensitivity regardless of soil variability, making it widely applicable in industrial IoT (IIoT) scenarios such as water-saving irrigation, outdoor fields, greenhouses, and more.


This device incorporates a built-in LoRa transmitter based on SX1276 for long-range transmission, a 2-in-1 sensor, and a custom battery. It is specifically designed and optimized for user cases powering end devices by batteries for years. To minimize the power consumption, the device wakes up, transmits the collected soil moisture and temperature data to the gateway, and then goes back to sleep.


Under the best of circumstances, the battery is expected to last for more than 6 years, depending on environmental factors and the data transmission intervals. Please kindly note that the default interval is once per hour. If you’d like to change the data upload interval, please refer to this document


To fit in adverse conditions, this wireless sensor is designed with industry standards and equipped with an IP66 waterproof enclosure, protecting the device from UV radiation, rain, and sunlight exposure.


The SenseCAP Sensor adopts a modular design, integrating the data logger with the sensor probe, which can be replaced by other SenseCAP sensor probes.


Note

SenseCAP Sensor is fully compliant with LoRaWAN specifications and can be used with standard LoRaWAN gateways. Please choose the corresponding gateway according to the sensor frequency.

Seeed also provides SenseCAP LoRaWAN Gateway for you to use with SenseCAP Sensors seamlessly without an extra huge workload for provisioning.

System Architecture

SenseCAP Architecture

SenseCAP Sensor + Other LoRaWAN Gateway Architecture

Features

  • Support LoRaWAN protocol Class A
  • High reliability and stability
  • Ultra-wide-distance transmission: 10km in line of sight scene, 2 km in urban scenes
  • Battery life ≥ 6 years
  • IP66 enclosure, suitable for outdoor applications
  • Rapid installation and deployment (see the video below)

Applications

  • Smart Agriculture
  • Smart Building and Industrial Control
  • Environmental Monitoring
  • Other Wireless Sensing Applications

Specifications

Soil Temperature
Range -30 ℃ to +70 ℃
Accuracy ±0.5 ℃
Resolution 0.1 ℃
Soil Moisture
Range From completely dry to fully saturated (from 0% to 100% of saturation)
Accuracy ±2% ( 0 to 50 %) ; ±3% ( 50 to 100 %)
Resolution 0.03 %(0 to 50%); 1%(50 to 100%)
General Parameters
Product Model LoRa-S-868-Soil MT-01
Microcontroller Ultra-low-power MCU
Support Protocol Based on LoRaWAN v1.0.2 protocol
LoRa Channel Plan EU868
LoRa Power Output 16 dBm (EIRP)
Sensitivity -137.5dBm(SF12, BW125KHz)
Current Consumption 5 μA (sleep mode)
120 mA max(active mode)
Communication Distance 2 to 10 km (depending on different antennas and environments)
Measuring Area A cylinder area (with the probe as the center, diameter: 7cm, height: 7cm)
IP Rating IP66
UV Resistance anti-aging (from rain/sun exposure): UL746C F1
Enclosure Material PC
Operating Temperature -30 ℃ to +70 ℃
Operating Humidity 0 to 100 %RH (non-condensing)
Device Weight 415g
Certification CE, FCC, RoHS
Battery (Contained in equipment)
Battery Life ≥ 3 years (upload data once per hour)
Battery Voltage 3.6V
Battery Capacity 19Ah (non-rechargeable)

LoRa Frequency

The device is designed with a fixed LoRa channel, which can not be modified by users. The supported channels are as follows. Please refer to this document for how to connect this device with a standard LoRaWAN gateway.
LoRa Channel Plan
Uplink (MHz) 868.1 – SF7BW125 to SF12BW125
868.3 – SF7BW125 to SF12BW125 and SF7BW250
868.5 – SF7BW125 to SF12BW125
867.1 – SF7BW125 to SF12BW125
867.3 – SF7BW125 to SF12BW125
867.5 – SF7BW125 to SF12BW125
867.7 – SF7BW125 to SF12BW125
867.9 – SF7BW125 to SF12BW125
Downlink (MHz) Uplink channels 1-8 (RX1)
869.525 – SF9BW125 (RX2 downlink only)

Part List

Part List
1 Sensor x1
2 Bracket x1
3 M4 Self-drilling Screw x4
4 M3 Self-drilling Screw x2

ECCN/HTS

HSCODE 9025800000
USHSCODE 8517709000
UPC
