RF Explorer IoT Touchscreen Kit For Raspberry Pi

PRODUCT DETAILS

Features

RF Explorer 3G+ IoT module

  • Design and customize your own Spectrum Analyzer, RF Detector, RF Sniffer, etc

  • Open source design, open source libraries and examples

  • Supported by all Raspberry Pi boards.

  • Can update IoT firmware directly from Raspberry Pi no other accessories required

  • Flexible board: can be connected to a Raspberry Pi by soldering a compatible female header

  • Recommend to select SMA antennas for specific application

  • IMPORTANT: In Raspberry Pi 3, WiFi should be shutdown to avoid interference with the analyzer.

Raspberry Pi Touch Screen

  • 7″ Touchscreen Display.

  • Screen Dimensions: 194mm x 110mm x 20mm (including standoffs)

  • Viewable screen size: 155mm x 86mm

  • Screen Resolution 800 x 480 pixels

  • 10 finger capacitive touch.

  • Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port.

  • Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi.

Description

This advanced kit provides a cost-effective solution for a high-performance, color touch screen Spectrum Analyzer covering 15MHz to 2700MHz.

RF Explorer 3G+ IoT modules are ready to use, advanced Spectrum Analyzer devices you can configure and control easily with Raspberry Pi using a compatible Touch Screen and free RFETouch software.

These modules are cost-effective platforms to develop your own customized Spectrum Analyzer, Power Detector, RF activity alarm, RF sniffer, RF QA test bench, etc.


Programmability and network capabilities of the hosting platform enables remote control and diagnosis scenarios, fully automated RF alarm systems, advanced assistance for unattended detection requirements such as those of radio operators, cell towers and HAM stations.

Additional items required but not included in the kit are:

  • Raspberry Pi model 2, 3 or 4
  • USB power source for Raspberry Pi and Touchscreen

These items can be reused from other experiments or ordered together with the kit.

Specification

RF Explorer 3G+ IoT module

Includes the advanced 3G+ MWSUB3G RF Explorer Module
Frequency band coverage 15-2700 MHz
Antenna connector Standard SMA 50 ohms
Advanced selectable internal input stage Normal, LNA, 30dB attenuator
Amplitude resolution 0.5dBm
Dynamic range -130dBm to +10dBm
Absolute max input power +30dBm
Average noise floor level (typical with LNA enabled) -120dBm
Frequency stability and accuracy (typical) +-10ppm
Amplitude stability and accuracy (typical) +-3dBm
Frequency resolution 1 KHz
Resolution bandwidth (RBW) Automatic 3KHz to 600KHz
Power consumption 100 – 500mW
All modules are factory calibrated

For more information please visit www.rf-explorer.com/iot

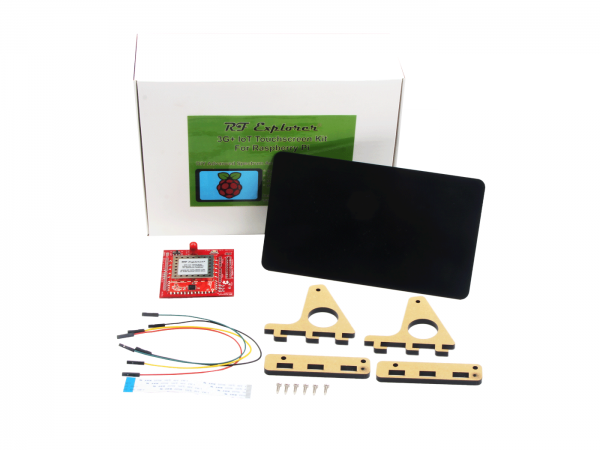

Part List:

  • RF Explorer 3G+ IoT module
  • Raspberry Pi official 7″ Touch Screen
    • Acrylic custom-designed holder

      ECCN/HTS

      HSCODE 8471609000
      UPC

      RF Explorer IoT Touchscreen Kit For Raspberry Pi

      $323.00

      This advanced kit provides a cost effective solution for a high performance, color touch screen Spectrum Analyzer covering 15MHz to 2700MHz

      View cart

      RF Explorer IoT Touchscreen Kit For Raspberry Pi

      $323.00

      This advanced kit provides a cost effective solution for a high performance, color touch screen Spectrum Analyzer covering 15MHz to 2700MHz

      View cart

      PRODUCT DETAILS

      Features

      RF Explorer 3G+ IoT module

      • Design and customize your own Spectrum Analyzer, RF Detector, RF Sniffer, etc

      • Open source design, open source libraries and examples

      • Supported by all Raspberry Pi boards.

      • Can update IoT firmware directly from Raspberry Pi no other accessories required

      • Flexible board: can be connected to a Raspberry Pi by soldering a compatible female header

      • Recommend to select SMA antennas for specific application

      • IMPORTANT: In Raspberry Pi 3, WiFi should be shutdown to avoid interference with the analyzer.

      Raspberry Pi Touch Screen

      • 7″ Touchscreen Display.

      • Screen Dimensions: 194mm x 110mm x 20mm (including standoffs)

      • Viewable screen size: 155mm x 86mm

      • Screen Resolution 800 x 480 pixels

      • 10 finger capacitive touch.

      • Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port.

      • Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi.

      Description

      This advanced kit provides a cost-effective solution for a high-performance, color touch screen Spectrum Analyzer covering 15MHz to 2700MHz.

      RF Explorer 3G+ IoT modules are ready to use, advanced Spectrum Analyzer devices you can configure and control easily with Raspberry Pi using a compatible Touch Screen and free RFETouch software.

      These modules are cost-effective platforms to develop your own customized Spectrum Analyzer, Power Detector, RF activity alarm, RF sniffer, RF QA test bench, etc.


      Programmability and network capabilities of the hosting platform enables remote control and diagnosis scenarios, fully automated RF alarm systems, advanced assistance for unattended detection requirements such as those of radio operators, cell towers and HAM stations.

      Additional items required but not included in the kit are:

      • Raspberry Pi model 2, 3 or 4
      • USB power source for Raspberry Pi and Touchscreen

      These items can be reused from other experiments or ordered together with the kit.

      Specification

      RF Explorer 3G+ IoT module

      Includes the advanced 3G+ MWSUB3G RF Explorer Module
      Frequency band coverage 15-2700 MHz
      Antenna connector Standard SMA 50 ohms
      Advanced selectable internal input stage Normal, LNA, 30dB attenuator
      Amplitude resolution 0.5dBm
      Dynamic range -130dBm to +10dBm
      Absolute max input power +30dBm
      Average noise floor level (typical with LNA enabled) -120dBm
      Frequency stability and accuracy (typical) +-10ppm
      Amplitude stability and accuracy (typical) +-3dBm
      Frequency resolution 1 KHz
      Resolution bandwidth (RBW) Automatic 3KHz to 600KHz
      Power consumption 100 – 500mW
      All modules are factory calibrated

      For more information please visit www.rf-explorer.com/iot

      Part List:

      • RF Explorer 3G+ IoT module
      • Raspberry Pi official 7″ Touch Screen
        • Acrylic custom-designed holder

          ECCN/HTS

          HSCODE 8471609000
          UPC
