RF Explorer 6G Combo PLUS – Slim Spectrum Analyzers

PRODUCT DETAILS

Features

  • Internal LNA amplifier and selectable attenuator for additional power range handling.
  • Low-frequency support from 50KHz covering LF, MF, HF, VHF, and UHF
  • High-frequency support covering all ranges up to 6.1GHz with no gaps.
  • New HELP and SET buttons to improve user interface and PRESET configuration selection with 2-clicks
  • Ideal choice for all usable HAM bands.
  • Pocket size and lightweight
  • Solid metal case with high-quality varnished paint
  • Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
  • High capacity internal Lithium battery for 10hs+ of continuous run, rechargeable by USB
  • Multi-platform Windows/Linux/MacOS Open Source software and API libraries

Description

RF Explorer 6G COMBO+ is the most powerful Spectrum Analyzer model, covering the full 6GHz range starting at 50KHz up to 6.1GHz with no gaps or limitations.

When compared to the standard 6G Combo model, the new SLIM design offers an outstanding robust enclosure with a strong metallic body and shiny varnished paint, a more convenient USB connector on the side, and a larger internal battery capacity.

What is an RF Explorer Spectrum Analyzer?

An RF Explorer Spectrum Analyzer is a special device designed to detect very sensitive signal radiation and identify signal interference, tune antenna setups, detect signal leakage and find hidden bugs, among many other applications.
The combination of small size, great sensitivity, and robust design makes it the ideal instrument to carry on for indoor and outdoor measurements.

When connected to a computer, it can be controlled by free software available for download with stunning high-resolution graphics, data storage, and reply features.

How RF Explorer Works?

For introductory details and quick start guide, please visit www.rf-explorer.com/start

For best handling work at the desk, we recommend the RF Explorer Holder SLIM

For best results detecting near field signal sources or interferences, we recommend the RF Explorer Near Field Antenna Kit

Tip

To learn more about the RF Explorer product family, don’t forget to check our blog Introducing RF Explorer Spectrum Analyzer Product Family

Comparison Tables of Spectrum Analyzer

RF Explorer

Range

Low-frequency Support



Battery

4G Combo PLUS – Slim

50KHz – 4GHz

from 50KHz covering LF, MF, HF, VHF, and UHF





Ideal choice for all usable HAM bands.





   10hs+ of continuous run

6G Combo PLUS – Slim

50KHz – 6.1GHz

ISM Combo PLUS – Slim

50KHz –  1GHz

&

2.35GHZ –             2.55GHz

from 50KHz covering LF, MF, HF, VHF and UHF up to 960Mhz



Ideal choice for HAM bands from 160meters to 33cm

 20hs+ of continuous run

 WSUB1G PLUS – Slim

 50KHz –  1GHz

Specifications

Frequency Band

  • Left connector: 0.05 – 960MHz

  • Right connector: 240 – 6100MHz

Frequency Span

2 – 960MHz in a single sweep

Internal Selectable LNA Gain

25dB

Internal selectable Attenuators

30dB and 60dB

Supporting OS

Windows, Linux and MacOS X

Resolution Bandwidth (RBW)

automatic 2.6Khz to 600Khz

Frequency Resolution

1Khz

Amplitude Stability and Accuracy (typical)

+-3dBm

Amplitude Resolution

0.5dBm

Dynamic Range

-125dBm to 10dBm

Absolute Max Input Power

+30dBm

Average Noise Level (typical LNA)

-125dBm

Wifi Analyzing Range

2.4GHz and 5GHz bands

Antenna Included

  • 2.4/5GHz dual-band antenna

  • UHF 400-900MHz rubber duck articulated antenna

  • Wideband 144/433MHz dual band telescopic antenna

SMA

Standard 50 ohms connectors

Battery

Internal Lithium-Ion 1800mA/h rechargeable battery

Applications

  • RF Spectrum Analysis for FM, TV and DTV, ISM, RFID, GSM, 4G/5G, IoT, GPS, Bluetooth
  • WiFi analysis and fine-tuning
  • Interference hunting
  • EMC pre-testing
  • RF device tuning (with Signal Generator working as Tracking SNA): Check this link for more details

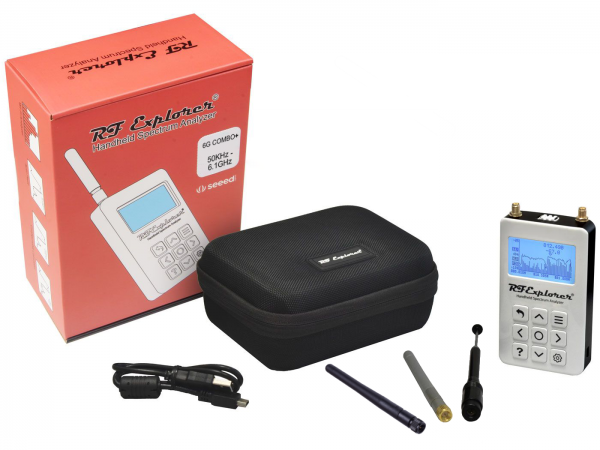

Part List

  • 1 x Spectrum Analyzer
  • 1 x Mini USB cable
  • 1 x Dual band 144/430MHz Telescopic antenna
  • 1 x UHF 400-900Mhz antenna
  • 1 x Dual band 5/2.4GHz antenna
  • 1 x EVA case

Compliance

All RF Explorer models are complaint with FCC as well as CE regulations.

All RF Explorer Wideband models have been certified under EN/IEC61236 and EN/IEC61000.

All RF Explorer models are RoHS compliant

ECCN/HTS

HSCODE 9030401000
USHSCODE 9030400000
UPC
CE 1
