RF Explorer 3G Combo Spectrum Analyzers

Features

• Pocket size and light weight

• Solid aluminum metal case

• Includes a transport EVA carry case for RF Explorer

• Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes

• High capacity Lipo for 16hs+ of continuous run, rechargeable by USB

• Windows PC client Open Source

• Can be extended with internal Expansion Modules for additional band and functionality

• Wide band coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz. This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.

Description

RF Explorer is a handheld digital spectrum analyzer, a very affordable tool for work in all popular frequency bands. It is based on a highly integrated frequency synthesizer and double balanced mixer which offers high performance, compact size, low consumption and low cost.

It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

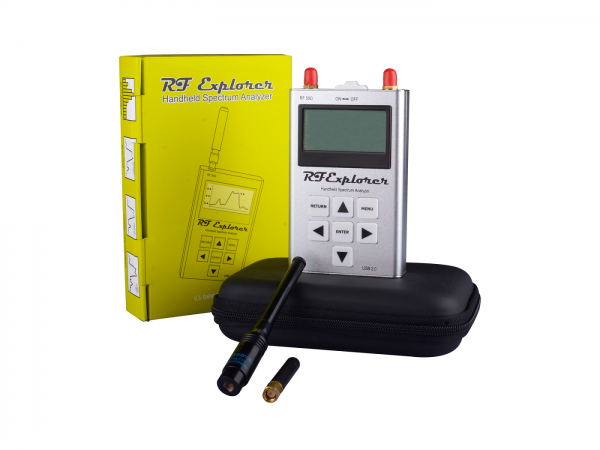

This model includes a WSUB1G baseline unit plus an RFEMWSUB3G Expansion Module conveniently assembled and tested. It comes with two SMA connectors and two antennas,a nice dual band telescopic 144/430MHz wideband telescopic antenna for all Sub-GHz frequencies and a whip helical for 2.4GHz band. Additional, specific band antennas may be needed to cover efficiently some of the frequencies supported.

The combination of these two models offer the wide band coverage of the WSUB3G module, together with the highest sensitivity and quick response of the WSUB1G model for the popular sub-1GHz frequencies.

Tech support

This product is designed by RF-Explorer,

• For more info and to get started with your RF Explorer, visit the start page.

• For questions and support, please visit https://support.rf-explorer.com

• For the software for RF Explorer series, please click the following logo for more information:



Compliance

All RF Explorer models are complaint with FCC as well as CE regulations.

All RF Explorer Wideband models have been certified under EN/IEC61236 and EN/IEC61000.

All RF Explorer models are RoHS compliant
