Motor Pack for Arduino

PRODUCT DETAILS

Description

When using the Arduino, there are many projects and things that you can do with it and one of them must includes driving a motor!
Today we bring you the Motor Pack for Arduino, which is a perfect kit for you to learn motor with Arduino. Whether your project requires a DC motor, a stepper motor, or a steering gear, all of them can be found in this kit!

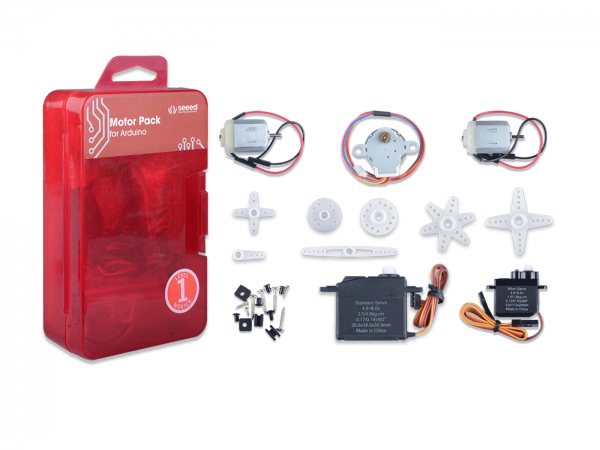

This kit consists of

  • DC motor x2
    Voltage: DC 6V
    Rated Speed:13000 rpm ±14%
    Motor Body Length: 38mm/1.46″
    Motor Body Diameter:20mm/0.79″
    Shaft Size:9.5/0.37″(L)
    Dupont cable:24AWG-100mm (Red/Black)
    Heat-shrinkable Tube: D1.5mm*10mm/0.06*0.39(Black)
  • Small stepper motor x1
    Voltage: DC 5V
    Motor Body Length: 38mm/1.46″
    Motor Body Diameter:20mm/0.79″
    Shaft Size:9.5/0.37″(L)
    Reduction Ratio: 1:64
    Step Angle: 5.625/64
    Dupont cable:24AWG-100mm (5 wires)
  • Standard servo x1
    Voltage: 4.8~6V
    Speed: 0.17/60°@4.8V; 0.14/60°@6.0V
    Torque: [email protected]; [email protected]
    Use Angle: ≤160°
    Size: 38.6*18.8*34.9mm/1.52*0.74*1.37″
  • Micro servo x1
    Voltage: 4.8~6V
    Speed: 0.12/60°@4.8V; 0.10/60°@6.0V
    Torque: [email protected]; [email protected]
    Use Angle: ≤160°
    Size: 23*11.5*24mm/0.9*0.45*0.94″

    Control the servo via pulse-width modulation (PWM) wave(50Hz). The angle (counterclockwise) is proportional to the duty of Logic High.

  • User Manual x1

Tip

Don’t forget to check this tutorial focusing on the 3 basic motors that you can drive with the Arduino which are the DC motor, Servo motor, and Stepper motor.

Tip

We also prepared Arduino Tutorial: How to drive a DC and Servo Motor to help you get started more easily.

ECCN/HTS

HSCODE 8501109990
USHSCODE 8501109990
UPC

Motor Pack for Arduino

$41.00

Motor Pack for Arduino is a perfect kit for you to learn motor with Arduino. Whether your project requires a DC motor, a stepper motor, or a steering gear, all of them can be found in this kit!
