PRODUCT DETAILS
Description:

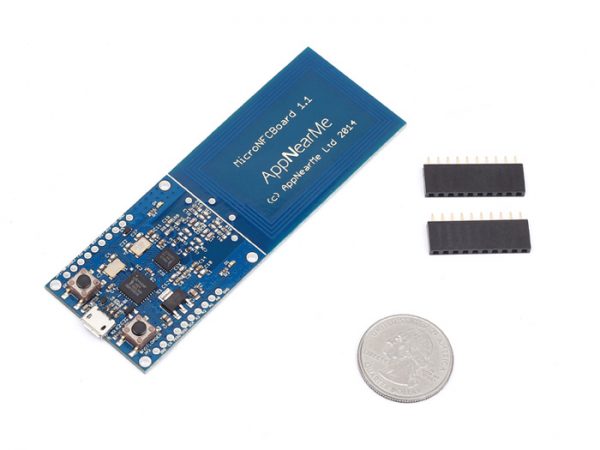

Micro NFC Board from App Near Me Ltd is the perfect prototyping solution for NFC applications. It is shipped with an easy to use library enabling the following features:
-
NFC tag reading and writing
-
Android beam (P2P/SNEP)
-
Dynamic tag emulation
It can be used as a peripheral with any PC/Raspberry Pi (Python API) or microcontroller (Arduino and mbed libraries). It is also mbed-enabled and the embedded ARM microcontroller can be reprogrammed using the mbed tools. Additionally, it can be used with the free AppNearMe app to easily control the board in real-time.
Features:
-
NFC
-
Tag reading
-
Tag writing
-
Android beam (P2P/SNEP)
-
Tag emulation
-
NXP LPC11U34FHN33/421 MCU
-
48MHz, 10KB RAM, 48KB FLASH, 4KB EEPROM
-
USB Device, SPI, I2C, UART, 4xADC, GPIO
-
Prototyping form-factor
-
20-pin 0.1″ pitch DIP package, 35x100mm
-
Splittable antenna
-
5V USB, 3.6-6V or 3.3V supply
-
Built-in USB drag ‘n’ drop FLASH programmer
-
Reset and bootloader enable push-buttons
-
2 LEDs on board
-
mbed.org Developer Website
-
Lightweight Online Compiler
-
High-level C/C++ SDK
-
Cookbook of published libraries and projects
Resources:
-
Python API: https://github.com/AppNearMe/micronfcboard-python
-
Arduino API: https://github.com/AppNearMe/micronfcboard-arduino-peripheral
-
mbed API: https://github.com/AppNearMe/micronfcboard-mbed-peripheral
-
mbed platform page: http://developer.mbed.org/platforms/MicroNFCBoard
For technical support and suggestions, please visit our forum.
Technical details
Dimensions | 120mm x75mm x3mm |
Weight | G.W 17g |
Battery | Exclude |
Part List
Micro NFC Board | 1 |
ECCN/HTS
HSCODE | 8517709000 |
USHSCODE | 8517700000 |
UPC | 841454105879 |
