Jetson Mate Cluster Standard – Carrier Board with 1 Jetson Nano & 3 Jetson Xavier NX SoMs for GPU Cluster/ Server

Features

• Utilizes the power of one Jetson Nano with 0.5 TFLOPS and three Jetson Xavier NX with 6 TFLOPS each
• Pre-installed SoMs on Jetson Mate carrier board makes it very convenient to get started
• All-in-one solution with a case, cooling fan, and SoMs in a compact form factor
• Easy to build a GPU cluster with easy-to-follow guides provided
• Onboard 5-port Gigabit switch for the SoMs to communicate with each other
• One master node with three worker nodes with the ability to power on/off the worker nodes separately

Description

Generally, GPU clusters can be hosted on the cloud as well as at the edge. Even though cloud clusters can provide very high processing power, sometimes they have drawbacks such as high latency, low data security and low system reliability. So, the most ideal solution is to have an edge GPU cluster to tackle these issues. However, they are very expensive and complex to get started. So, we are excited to bring you Jetson Mate Cluster Standard which can provide a powerful edge GPU cluster solution at a much affordable price, while being very easy to get started with the provided guides. Also this solution comes in a much compact form factor when compared to other GPU clusters in the market.

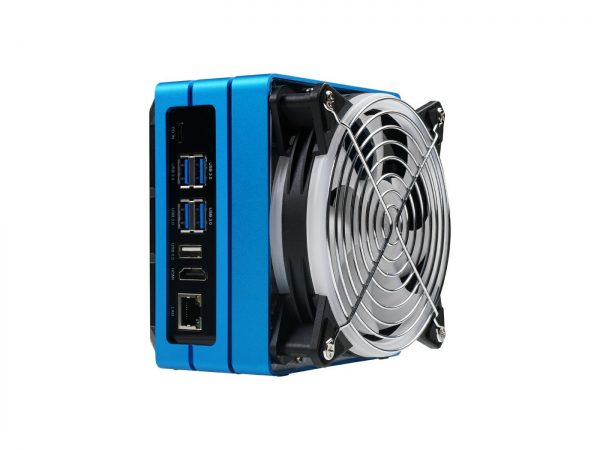

Jetson Mate Cluster Standard is an all-in-one solution for your GPU cluster and server applications. It includes a Jetson Mate carrier board, a case, a cooling fan, and most of all, one Jetson Nano with 0.5 TFLOPS AI performance and three Jetson Xavier™ NX SoMs with 6 TFLOPS AI performance each.

Jetson Mate is a carrier board in which you can install all the 4 SoMs provided. In addition, you can also use your own different combinations of Jetson Nano and Jetson Xavier™ NX SoMs up to a maximum of 4 SoMs. There is an onboard 5-port Gigabit switch enabling the 4 SoMs to communicate with each other. All the 3 peripheral SoMs can be powered on or off separately. With one 90w PD power adapter and 1 ethernet cable, you can easily build your own powerful Jetson Cluster.

Support from the Community

Applications

• GPU Server
• Home Lab
• GPU Cluster

Hardware Overview

Seeed Weekly Show EP20 | Industrial Case for SBCs, Jetson Mate, re_computer HDD mounting bracket

Specifications

NVIDIA Jetson Nano Module

Specification	Details
GPU	NVIDIA Maxwell architecture with 128 NVIDIA CUDA® cores
CPU	Quad-core ARM Cortex-A57 MPCore processo
Memory	4 GB 64-bit LPDDR4, 1600MHz 25.6 GB/s
Storage	16 GB eMMC 5.1
Video Encode	250MP/sec(1x 4K @ 30 (HEVC), 2x 1080p @ 60 (HEVC), 4x 1080p @ 30 (HEVC), 4x 720p @ 60 (HEVC), 9x 720p @ 30(HEVC))
Video Decode	500MP/sec(1x 4K @ 60 (HEVC), 2x 4K @ 30 (HEVC), 4x 1080p @ 60 (HEVC), 8x 1080p @ 30 (HEVC), 9x 720p @ 60 (HEVC))
Camera	12 lanes (3×4 or 4×2) MIPI CSI-2 D-PHY 1.1 (1.5 Gb/s per pair)
Connectivity	Gigabit Ethernet, M.2 Key E
Display	HDMI 2.0 and eDP 1.4
USB	4x USB 3.0, USB 2.0 Micro-B
Others	GPIO, I2C, I2S, SPI, UART
Mechanical	69.6 mm x 45 mm, 260-pin edge connector

NVIDIA Jetson Xavier NX Module

Specification	Details
AI Performance	21 TOPS (INT8)
GPU	NVIDIA Volta architecture with 384 NVIDIA CUDA® cores and 48 Tensor cores
Max GPU Frequency	1100 MHz
CPU	6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 MB L2 + 4 MB L3
Max CPU Frequency	1900 MHz
Memory	8 GB 128-bit LPDDR4x @ 51.2GB/s
Storage	16 GB eMMC 5.1
Power	10 W | 15 W
PCIe	1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s *
CSI Camera	Up to 6 cameras (24 via virtual channels)
	14 lanes (3×4 or 6×2) MIPI CSI-2
	D-PHY 1.2 (up to 30 Gbps)
Video Encode	2x 4K @ 30 | 6x 1080p @ 60 | 14x 1080p @ 30 (H.265/H.264)
Video Decode	2x 4K @ 60 | 4x 4K @ 30 | 12x 1080p @ 60 | 32x 1080p @ 30 (H.265) 2x 4K @ 30 | 6x 1080p @ 60 | 16x 1080p @ 30 (H.264)
Display	2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0
DL Accelerator	2x NVDLA Engines
DLA Max Frequency	1100 MHz
Vision Accelerator	7-Way VLIW Vision Processor
Networking	10/100/1000 Base-T Ethernet
USB	1xUSB 3.1 (10 Gbps) | 3xUSB 2.0
Other IOs	1x SDIO / 2x SPI / 3x UART / 2x I2S / 4x I2C / 1x CAN / GPIOs
Dimensions	45 mm x 69.6 mm
Connector	60 pin SO-DIMM connector

Jetson Mate Carrier Board

Specification	Details
Onboard 5-Port Gigabit Switch	Microchip KSZ9896CTXC
Power Supply	90W PD Power Adapter

At Seeed, you can also design your solution all in one page where you choose the desired SBC, any compatible mission board (HATs, expansions) that you want, I/O modules, and nicely place them in the suitable enclosures/cases such as re_computer case. Rest assured, as we have tested full compatibility for all of the products listed on the page. Try it now here and save you time to find hardware compatibility!



Part List:

• 1 x Jetson Mate Carrier Board
• 1 x Jeton Mate Cooling Fan
• 1 x Jetson Mate Case
• 1 x Jetson Nano
• 3 x Jetson Xavier™ NX
