Industrial PAR Sensor (S-PAR-02A), MODBUS-RTU RS485

PRODUCT DETAILS

Note

The Industrial PAR Sensor has three versions.

(1) PAR-2.5V: supporting 2.5V analog voltage output, the cable comes in the format of hook-up wires.

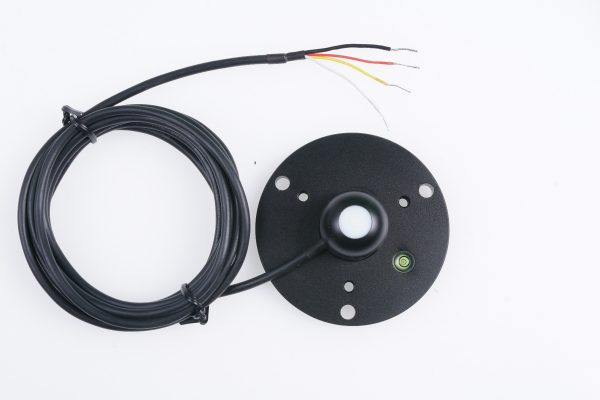

(2) S-PAR-02A: supporting MODBUS-RTU RS485 protocol, the cable comes in the format of hook-up wires

(3) S-PAR-02B: supporting MODBUS-RTU RS485 protocol, the cable comes in the format of a waterproof aviation connector. With this version, you won’t have to use screws to connect the cable to the data logger. And it can be used with SenseCAP Sensor Hub 4G Data Logger instantly with ease.

The only difference between versions (2) & (3) is in the cable connector. Please choose the version that best suits your needs:



Features

  • Compact size, simple installation, quick integration
  • High performance: high accuracy, fast response, and superior stability
  • Strong Robustness: IP66 Enclosure and it’s watertight and dustproof; can operate under a wide range of temperature: -30°C to 75°C
  • Supports universal MODBUS RS485 protocol: connect to all MODBUS RS485 data loggers
  • Wide-range Power Supply: 5~24V DC

Sunlight has a tremendous impact on the lifecycle of almost all creatures on this planet.  humans, animals, and plants all rely on on the sun and its radiations. For plants, especially, light is a key factor in photosynthesis reaction and controls their survival. Different species of plants (for instance, C3 vs C4 plants) and even different growth stage of the same species demands different degrees of light duration, exposure, strength, and radiation range. Sun exposure, for instance, influences the foliage density, flowering, and fruiting of a plant. Sensors are thus a useful technology to help ensure the effective controlling of important parameters, like photosynthetically active radiation (PAR), contributing to the success of research or agricultural activities.



The industrial-grade PAR sensor featuring high performance, accuracy, and easy-installment, is designed to measure real-time photosynthetic light levels, which is the primary driver of plant photosynthesis. This instrument is able to monitor the PAR in environments with natural light sources across a radiation range from 400 to 700 nm and provides important parameters for researchers and farmers. The sensor contains a Silicon photodetector. When there’s light in, the sensor generates a voltage signal that is directly proportional to the PAR under the light source. You are able to obtain the measurement value in a unit of μmol/m2•s. The instrument supports the MODBUS-RTU RS485 protocol. You can therefore directly connect this PAR sensor with RS485 data loggers or digital voltmeters to create monitoring systems that meet your own demand.



This PAR sensor is robust with IP66 enclosure and is able to withstand a wide range of temperature from -30°C to 75°C, unlocking applications in harsh outdoor environments to support photosynthesis, solar, and ecological research, and to assist smart agriculture, outdoor large-scale plantation, greenhouse farming, tourism, meteorological sensing, etc.



Applications

  • Environmental monitoring

  • Agricultural research

  • Solar energy research

  • Optical Research

  • Other sensor applications



Technical Parameters



Measuring range



0 ~ 2500 μmol/m²·s



Response spectrum



400 ~ 700nm

Resolution

1 μmol/m²·s





General Parameters



Product number



S-PAR-02

Supply voltage



5V ~24V



interface



RS-485



Protocol



MODBUS-RTU RS485

(0-2.5V voltage output can be customized)

Measurement interval



1s



Linearity



Maximum deviation 1%



stability



Year offset <2%



Response time



10 μs



Operating temperature



-30 ~ +75 ℃

Humidity

0 ~ 100% (no condensation)



Cable length



2m



Equipment net weight



300g





Dimension





Wiring




ECCN/HTS

HSCODE 9025900090
UPC
