Industrial Light Intensity Sensor, MODBUS-RTU RS485 &0-2V (S-Light-02), with Waterproof Aviation Connector

PRODUCT DETAILS

Note

This Industrial Light Intensity Sensor comes in two versions. The main difference is in the cable connector. Please choose the version that best suits your needs:

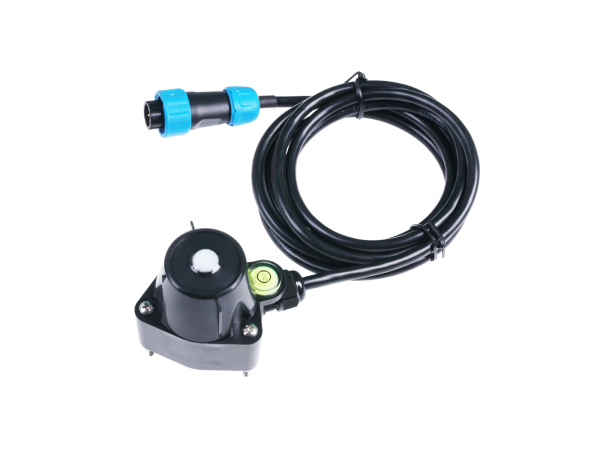

(1) S-Light-02: with a waterproof aviation connector. This version saves you time in deployment as you won’t have to use screws to connect the cable to the data logger. And it can be used with SenseCAP Sensor Hub 4G Data Logger instantly with ease.

(2) S-Light-01: with hook-up wires.

Features:

  • Wide-range measurement: up to 200000lux
  • Output interface with RS485, Voltage
  • Level indicator and spring-loaded for installation
  • IP66 rated: waterproof & dustproof, suitable for outdoor applications
  • High accuracy and consistency with excellent stability
  • Reverse power protection and built-in TVS/ESD protection


Light intensity sensors are used to measure ambient illuminance in a given environment. This can have many important applications. Light directly impacts the growth of plants, so in agriculture, it can run manage farms and greenhouses more efficiently with real-time light data and analysis. Operators of electric grids and solar farms can use the data to predict the available electricity and run their operations more efficiently.



This Light Intensity Sensor (S-Light-01) is ideal for this kind of environment. It is IP66 rated, waterproof, and dustproof, and has no problem working under harsh conditions like solar farms, outdoor agricultural farms, as well as greenhouses. Each sensor is calibrated and offers high accuracy and consistency.



This sensor support two output options MODBUS-RTU RS485 protocol or analog voltage (0-2v) and can be used with a data logger conveniently.



Applications:

  • Weather stations
  • Solar farms
  • Outdoor Farming
  • Greenhouse
  • Research


Specifications

Output Interface

RS485 Modbus-RTU,  Analog Voltage 0-2V (Output resistance ~0ohm)

Power Supply

3.9-30V/DC

Power Consumption

[email protected] DC

Illuminance Range

Range:0~200000 Lux, Accuracy:±6% , Resolution:1lux

Direction Error

30°±3%,60°±6%,80°±24%(Cosine Characteristics)

IP Ratings

IP66

Operating Temperature

-40~85°C

Installation

Screw hole * 3

Cable Length

2 meters

Dimension

75*55*58mm



Wiring





Dimensions

ECCN/HTS

HSCODE 9031499090
UPC
