PRODUCT DETAILS
Features
- Single-point medical-grade infrared temperature sensor (MLX90614)
- Wide temperature measurement range (-70℃~380℃)
- Narrow field-of-view (5°) for accurate measurements
- I2C Grove interface for easy communication with an MCU
Description
This Infrared Thermometer module is equipped with a single-point medical-grade infrared temperature sensor (MLX90614), which can detect the temperature of objects with an accuracy of ±0.2°C in the body temperature range. At room temperature, the surface temperature of the measured object can reach an accuracy of ±0.5°C in a wide range. The module can use the I2C protocol to obtain data from the camera. The field of view (FOV) of this sensor is 5°, the temperature measurement range is -70°C～380°C, and the working temperature is that the sensor’s Ta value is between -40°~85°.
Specifications
| Specification | Details |
|---|---|
| FOV | 5° |
| Measurement accuracy | ±0.2°C |
| Measuring range | -70°C~380°C(object temperature) |
| Senser operating temperature | Ta is between -40°~85° |
| Refresh Rate | 0.5Hz ~ 64Hz |
| Interface | I2C |
| Voltage | 3.3V-5V |
| Current | ~18mA |
Part List
1 x Grove – Thermal Imaging Camera – MLX90614 DCI IR Array with 5° FOV
ECCN/HTS
| HSCODE | 9031900090 |
| UPC |

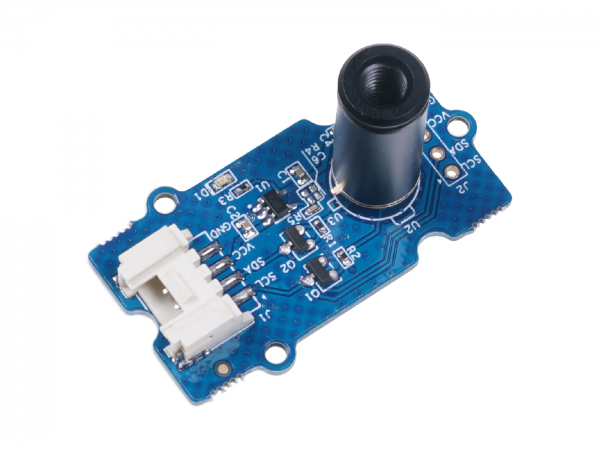

Grove – Single-Point Infrared Thermometer – MLX90614 DCI with 5° FOV
$90.00
This Infrared Thermometer module is equipped with a single-point medical-grade infrared temperature sensor (MLX90614), which can detect the temperature of objects with an accuracy of ±0.2°C in the body temperature range. At room temperature, the surface temperature of the measured object can reach an accuracy of ±0.5°C in a wide range. The module can use the I2C protocol to obtain data from the camera. The field of view (FOV) of this sensor is 5°, the temperature measurement range is -70°C～380°C, and the working temperature is that the sensor’s Ta value is between -40°~85°.
Grove – Single-Point Infrared Thermometer – MLX90614 DCI with 5° FOV
$90.00
This Infrared Thermometer module is equipped with a single-point medical-grade infrared temperature sensor (MLX90614), which can detect the temperature of objects with an accuracy of ±0.2°C in the body temperature range. At room temperature, the surface temperature of the measured object can reach an accuracy of ±0.5°C in a wide range. The module can use the I2C protocol to obtain data from the camera. The field of view (FOV) of this sensor is 5°, the temperature measurement range is -70°C～380°C, and the working temperature is that the sensor’s Ta value is between -40°~85°.
