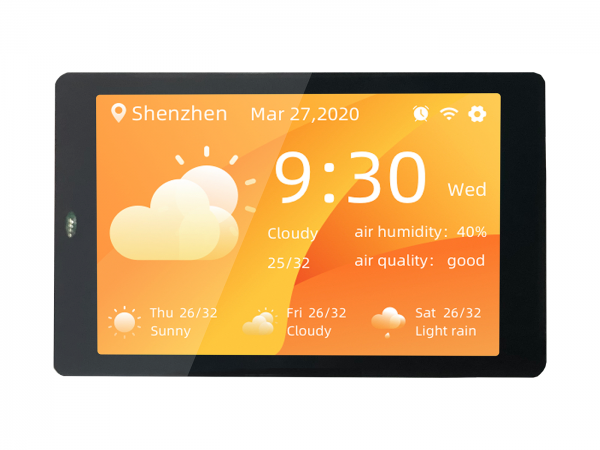

ESP32 Development board – WT32-SC01 with 320×480 capacitive multi-touch screen

PRODUCT DETAILS

Features

  • Highly integrated ESP32-WROVER-B module with low power consumption
  • 3.5-inch 320×480 capacitive 2-point multi-touch screen for easy interactions
  • Easy to program using the graphical drag-and-drop programming
  • Wireless connectivity with Wi-Fi and BLE
  • Customize functions such as button operation, voice control, and camera operation through the expansion interfaces

Description

Now you can experience easy touch interactions with an ESP32 development board!

WT32-SC01 is an ESP32 Development board with a 3.5-inch color touch screen. The touch screen enables a new way of interacting with the ESP32. The board is equipped with a graphical user interface (GUI) firmware, which supports graphical drag-and-drop programming and helps users develop a customized control platform.

WT32-SC01 development board adopts the ESP32-WROVER-B module, which is a general-purpose MCU module with Wi-Fi, Bluetooth, 4MB SPI Flash and 8MB PSRAM.

By using the expansion interfaces on both sides of the development board, developers can customize the use of functions such as button operation, voice control, and camera operation, which greatly shortens the user’s development cycle.

Specifications

Specification Details
SoC ESP32-WROVER-B module
CPU Dual-core [email protected] 32-bit LX6 MCU
Connectivity 802.11 b/g/n 2.4GHz Wi-Fi
Bluetooth v4.2 BR/EDR and Bluetooth LE standards
Display 3.5 inch, LCD @320×480
Capacitive with 2-point multitouch
Power Supply DC 5V/2A. 5V/1A
Operating Temperature -20 to +85 °C

Hardware Overview

  • 1. ESP32-WROVER-B module
  • 2. Capacitive touchpad interface
  • 3. LCM display interface
  • 4. Power management
  • 5. Power switch
  • 6. Reset Button
  • 7. USB Type-C interface
  • 8 – 9. Expansion board interface
  • 10. Power indicator
  • 11. UART communication indicator

Dimensions

Part List

  • 1 x ESP32 Development board – WT32-SC01 with 320×480 capacitive multi-touch screen
  • 1 x USB Type-C cable

ECCN/HTS

HSCODE 8543709990
USHSCODE 8543709990
UPC
