Features
- Powered by Raspberry Pi Compute Module 4 (CM4) running up to 1.5GHz
- Rich interfaces for industrial applications
- Industrial-grade isolated DI/DO terminal
- Industrial-grade isolated RS-485 interface
- Diverse network connectivity options
- Dual-band 2.4GHz/5GHz Wi-Fi
- Gigabit Ethernet
- 4G/LTE communication
- Designed for reliability with built-in uninterruptible power supply (UPS) with supercap
- Integrated thermal management with full Aluminum heatsink enclosure
- Convenient form factor with 35mm DIN and wall mount
Description

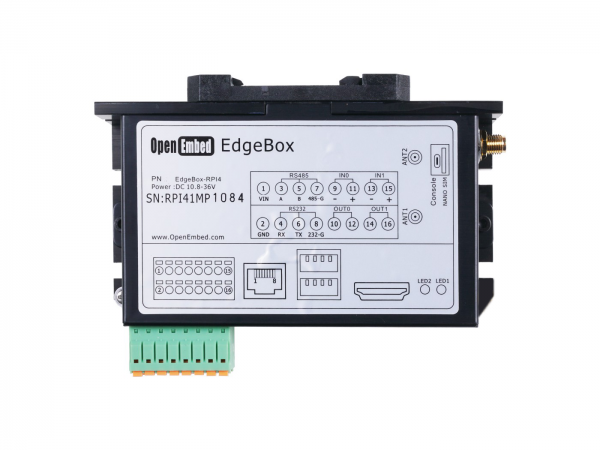

The EdgeBox-RPI4 is an edge computing controller powered by the versatile Raspberry Pi CM4. Equipped with industrial-grade DI/DO & RS-485 interfaces, it was designed for easy setup and quick deployment of typical industrial applications, such as status monitoring, facility management, digital signage, and remote control of public utilities. Furthermore, it can be utilized as a user-friendly gateway solution by leveraging compatibility with industry-standard protocols, saving you on deployment costs like electrical power cabling and reducing deployment time.
The EdgeBox-RPI4’s ultra-lightweight and compact design is the answer for applications in environments with limited space and can operate reliably in a variety of extreme conditions including in-vehicle applications. With the EdgeBox-RPI4, you can build IoT Gateways, a 4G/LTE Router, or even use it as a programmable logic controller in industrial automation and control systems!
Applications
- IoT Gateway
- 4G/LTE Router
- Edge Computing Controller
- Software-defined PLC (Programmable Logic controller)
- Industrial Controller
- Automation and Control Systems
Specifications
| Specification | Details |
|---|---|
| CPU | Broadcom BCM2711, Quad-core Cortex-A72 64-bit SoC @ 1.5GHz |
| Memory | 4GB LPDDR4-3200 SDRAM |
| Storage | 32GB eMMC M.2 socket for NVMe SSD up to 2TB |
| Wireless | 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac Bluetooth 5.0, BLE |
| Video Interface | HDMI 2.0a (up to 4kp60 supported) |
| Interfaces | 1 × RJ45 ethernet port support 10/100M/1000M 2 x USB 2.0 Port 1 x HDMI 2.0a 2 × DI 2 x DO 1 x isolated RS485 1 x RS232 1 x mini-PCIe socket with sim card support 1 x M.2 socket with 2242 NVME SSD card support Dual-Band 802.11ac Wi-Fi (optional) Wide Range of Supported Power Supply Voltages 10.8-36V DC |
| Dimensions | 124mm x 76mm x 35mm |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | 1 x Mono AMIC 1 x Dual channel DMIC 1 x LINEOUTR/L, supports 8K/16K/32K/48KHz Sampling Rate |
| EMI | IEC 61000-6-2 |
| ESD Protection | 4 kV/8 kV with IEC 61000-6-2 IEC61000-4-4 |
| Peripherals | 4 x UART（PM_UART is used as Debug Serial by default） 1 x SDIO2.0 （Data bus 1/4 bit mode, compatible with SD Specification 2.0） 2 x I2C, 1 x I2S, 1 x SPI, 4 x PWM, several GPIOs |
| Certifications | CE, FCC |
| Additional Features | Built in UPS with Supercap (optional) RTC Standalone Watchdog timer Cryptographic Encryption with ATECC608a Chip (optional) |
| Power Supply | Minimum: 12V/1A, Maximum: 24V/1A |
Part List
1 x EdgeBox-RPi4 Edge Computing Controller with 4GB RAM, 32GB eMMC and 2.4/5GHz WiFi
EdgeBox-RPi4 Edge Computing Controller with 4GB RAM, 32GB eMMC and 2.4/5GHz WiFi
$288.00
Rugged, fanless Edge Computing Controller powered by the Raspberry Pi Compute Module 4 (CM4) for harsh industrial environments. It can be used to connect field networks in cloud or IoT applications.
EdgeBox-RPi4 Edge Computing Controller with 4GB RAM, 32GB eMMC and 2.4/5GHz WiFi
$288.00
Rugged, fanless Edge Computing Controller powered by the Raspberry Pi Compute Module 4 (CM4) for harsh industrial environments. It can be used to connect field networks in cloud or IoT applications.
